GeoSat Electronic

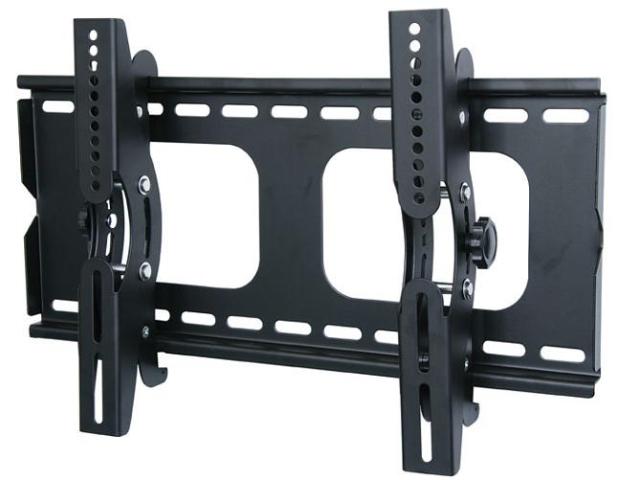

Universal LCD/Plasma Wall Mount Bracket
Suite TV Size from 32" to 60", weights 176lbs/80kgs
Tilt: -15 to +15 degrees
Durable powder-coated finish (Black)
Compliant to VESA standard
TV is mounted 80mm off wall
English user manual included in each packaging
All mounting accessories included in each packaging

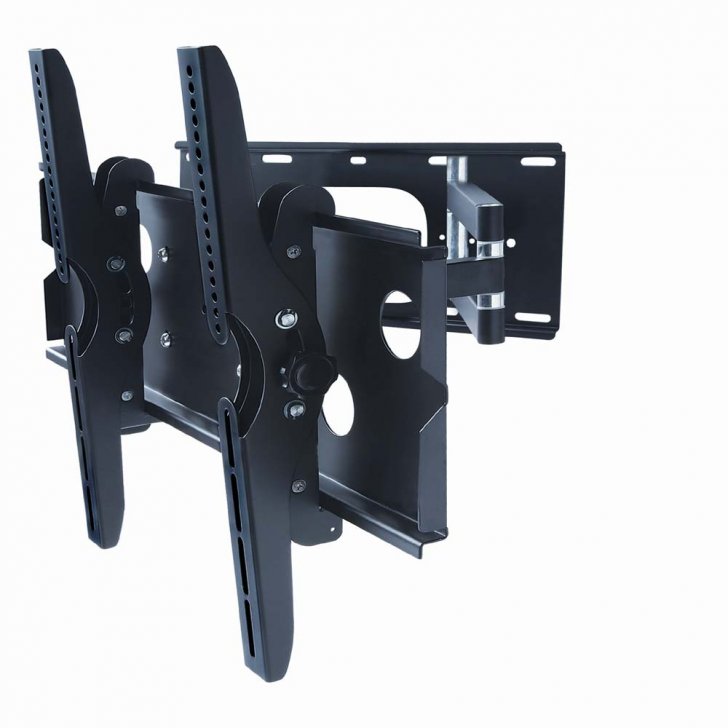

Universal LED LCD Articulating  High Quality Heavy Duty Swiveling TV Wall Mount

Model#: BEST-005-B

 32"-60", Tilt ±15°, Swivel ±70°

Safety Guarantee for your expensive LCD Monitors & TVs!

Universal Design for Most 32"-60" LCD Monitors & TV s
Tilt: -15° to +15°
Swivel: -70° to +70°
Solid heavy-gauge cold steel construction
Capacity: 175 lbs/80kgs
Min. distance to wall: 125mm/6"
Max. distance to wall: 750mm/29.5"
Easy install, installation screws included!
Product Dim. (WxHxD): 815x530x125-750mm / 32x21x5"
Max Mount (WxH): 770x480mm / 30.75x19"
Net Weight: 12.2 kgs / 27 Lbs
Easy install, all installation screws are included!

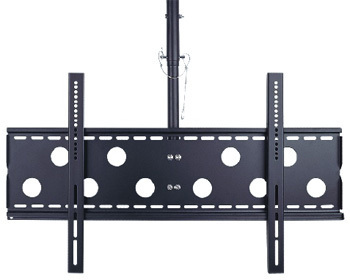

The CPLB102M is made from cold steel (2mm thickness) and powder coated in fashionable black. The CPLB102M ceiling mount is universally suitable for all those plasma/LCD TV with wall-mounting hole pattern within 720x500mm (Horizontal x Vertical), even if the TV screen size is bigger than 50".

Key Features

• 360° full motion ceiling mount bracket, tilt up to 20°
• Made from heavy-duty cold steel, powder coated in fashionable black
• Suitable for all those plasma/LCD TVs with wall-mounting hole pattern within 720x500mm (Horizontal x Vertical), including those compatible with VESA 600x400, VESA 400x400, VESA 400x200 and VESA 200x200 mounting standard.
• The length of the hanging tube can very from 60cm, 70cm, or 80cm (from ceiling to the end of the tube, not to the bottom of TV)
• Cable management: cables can be hidden inside the tube
• The overall size (not including the telescopic tube): 765 x 530mm (Horizontal x Vertical)
• Full set of fittings included
• We also sell the longer pole for this ceiling TV bracket for £9/ea, whose length is adjustable between 1m/39.4", 1.12m/44.1", 1.25m/49.2", 1.37m/53.9", and 1.50m/59.1", please select the option below

How do I choose the right size ceiling/wall mount for my LCD/Plasma TV?

1. First, check the back of your TV and find the four threaded holes (if there is no threaded holes or less then four holes, then the TV is not classified as wall-mountable nor ceiling mountable);
2. Secondly, measure the horizontal and vertical distances between them (in mm); for example, horizontal = 400mm; vertical =200mm
3. Now select a bracket whose supported max. mounting-hole pattern is larger than one you have just measured; but the overall size should be smaller than the TV otherwise the bracket will be stick out from the back of the TV.

Antra stocks a wide range of high quality flat panel TV wall mount bracket kit, wholesale inquiries are welcome.

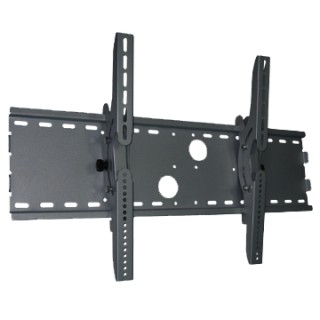

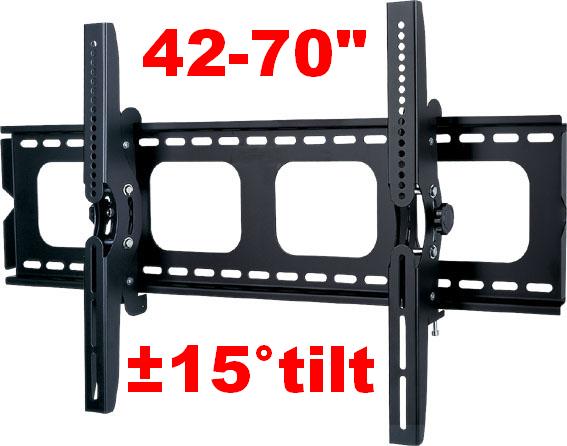

Plasma & LCD TV Wall Bracket ATM-XL15B

Heavy Duty Design for TV size:

42", 46", 50", 52" , 60",70"

Tilt: -15 to +15 Degree!

Safety Guarantee for your expensive Plasma & LCD TVs

PLASMA & LCD Tilt TV WALL MOUNTS Bracket 23"-37" M15B

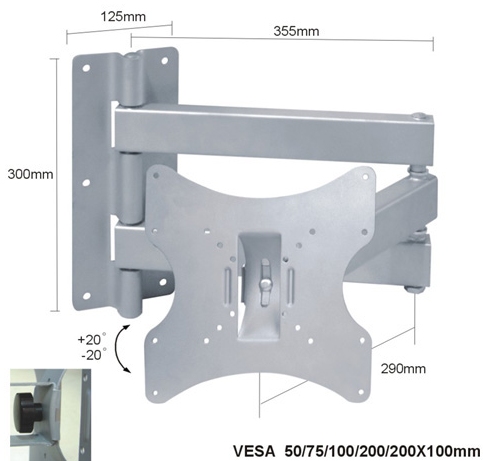

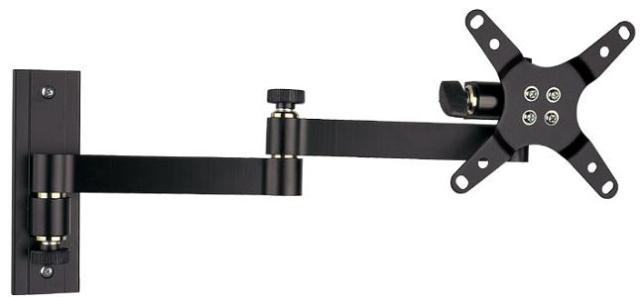

LCD TV Wall Mount Bracket Tilt 15° Swivel 180° 13-26"

Safety Guarantee for your expensive LCD Monitors & TVs!

Universal Design for Most 13"-37" LCD Monitors & TV s
Tilt: -12° to +12°
Swivel: 180°
Rigid Extruded Aluminium Structure

 Net Weight: 1.5kgs/3lbs only
Capacity: 55 lbs/25kgs
Min. distance to wall: 81mm/3.25"
Max. distance to wall: 410mm/16"
No. of pivot points: 3
Extension Bar for VESA 100x200, 200x200 included.
Easy install, all installation screws included!

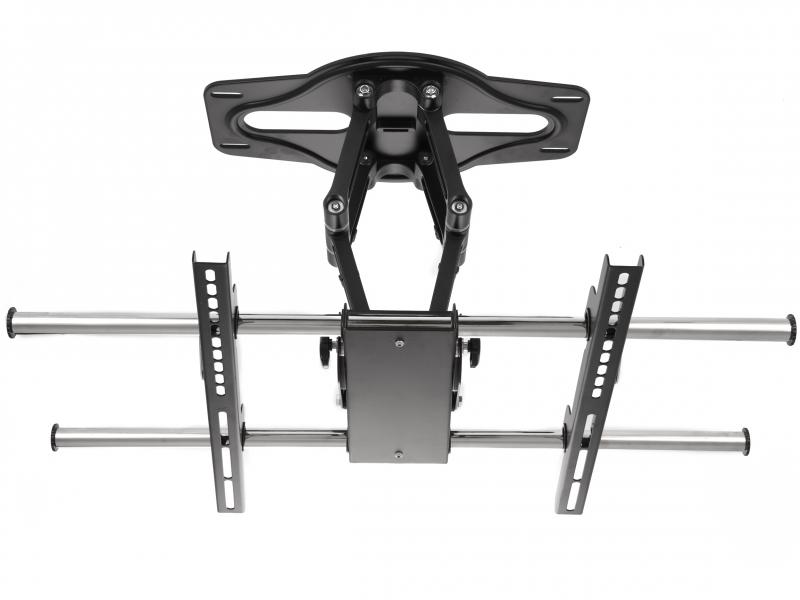

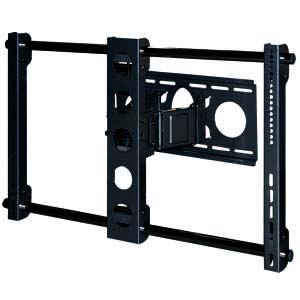

• 30"-52"
